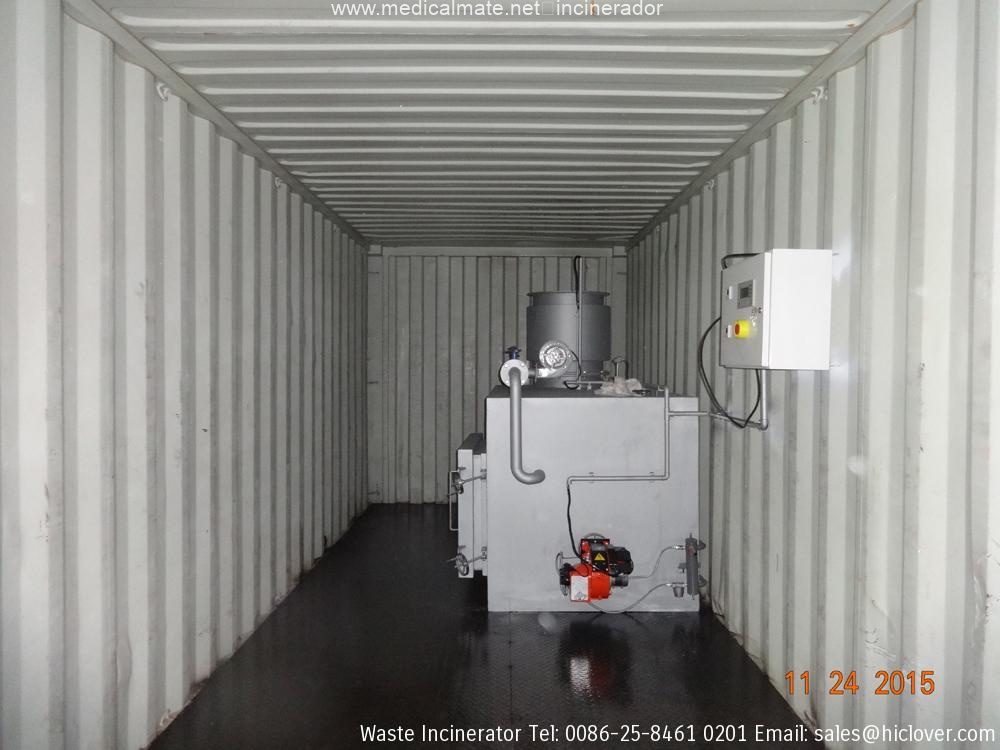

we are portable incinerator manufacturers, the Mobile Containerized Incinerator, moveable for truck, buring rate upto 100kgs per hour. We design for end customer, we dispatch for better services.
| Model | CA50 |
| Feed Capacity | Average 60 kgs per feed |
| Burning Rate | Average 70 kgs per hour |
| Burning Time per Feed | 1 hour |
| Voltage | 220V |
| Power | 0.7Kw |
| Fuel | Diesel oil |
| Burner | Italy Burner |
| Feed Mode | Manual |
| Fuel consumption (Oil) | Average 18 Kgs/Hour |
| Internal Dimensions | 100x80x70cm (Primary Chamber) |
| External Dimensions | 230 x 130 x 155cm (main body) |
| Waste combustion chamber | 560Liters |
| Post Combustion Chamber | 280Liters |
| Oil Tank Capacity | 100 Liters |
| Door Opening | 70 x 50cm |
| Chimney | 5.0M |
| Gross Weight | 4500kgs |
| Chamber Material | Firebrick ,Refractory Concrete |
| Max. Heat Value | 240,000Kcal/Hr. |
| Operation Technical Specifications | |
| Solid Chamber temperature | 8000C -10000C |
| Gas Chamber temperature | 10000C -12000C |
| Chamber Anti-Rate | 14500C |
| Residency time | 2.0 Sec. |
| Burning efficiency | ＞98% |
| Waste Lower Calorific Power | 3000Kcal |
